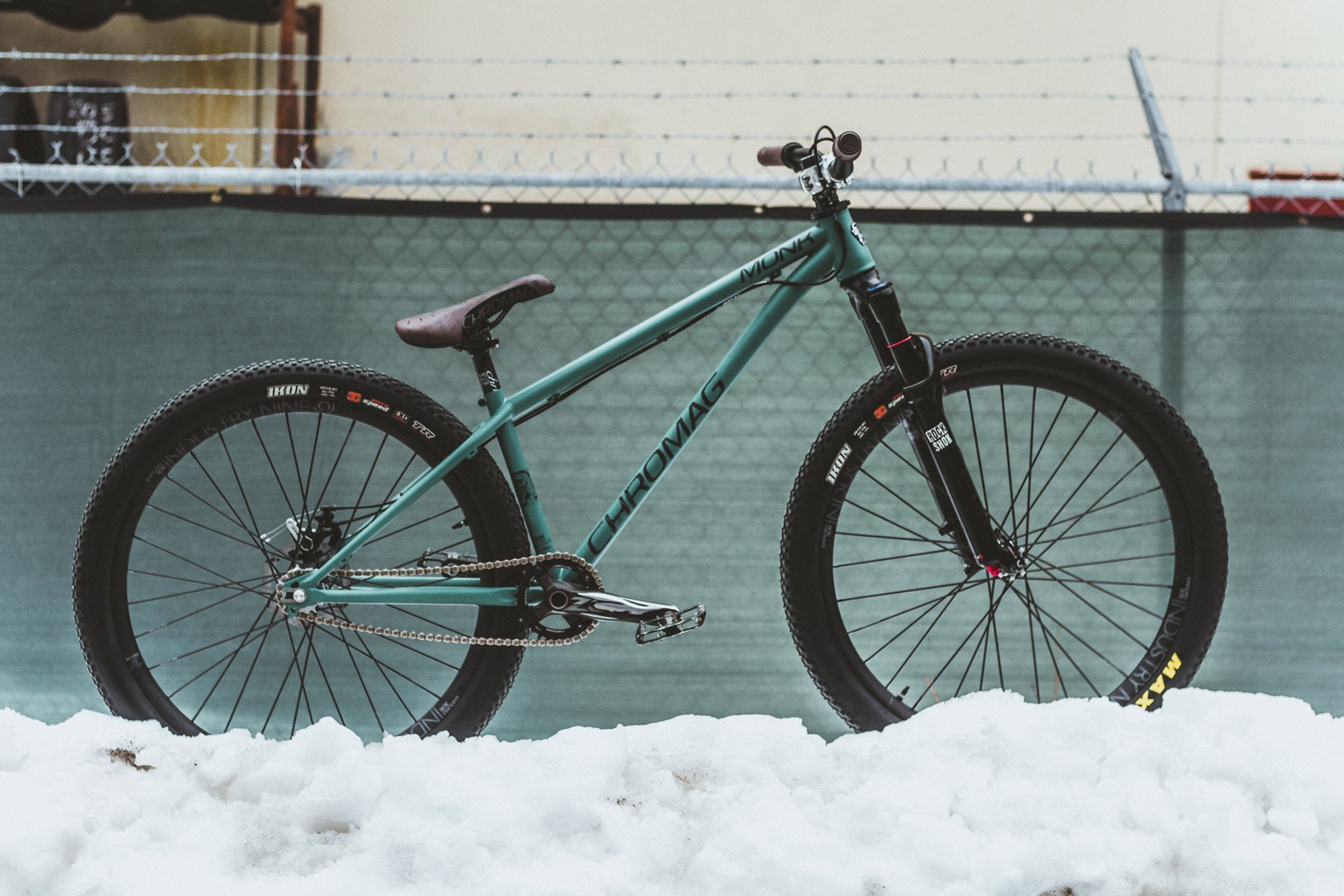

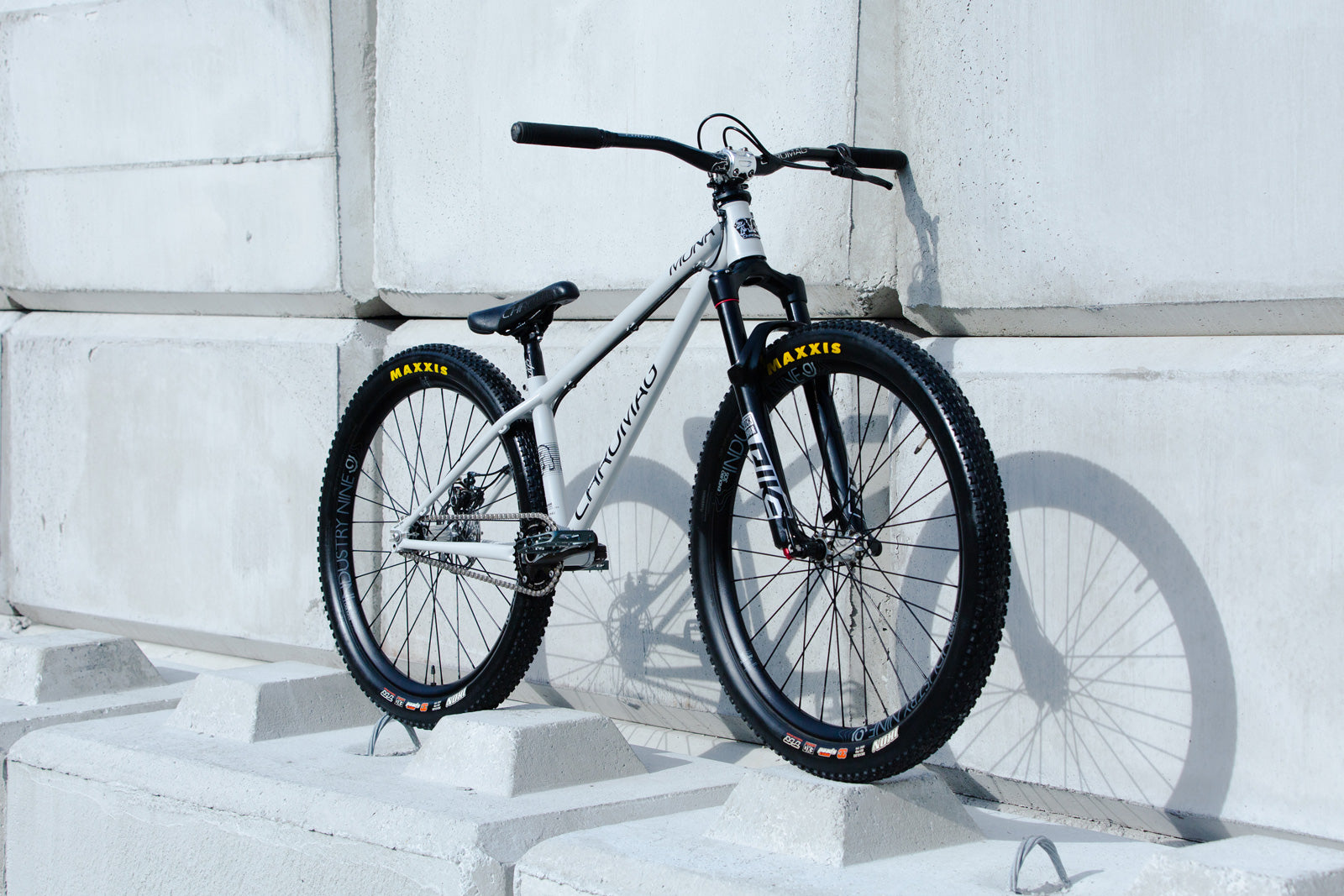

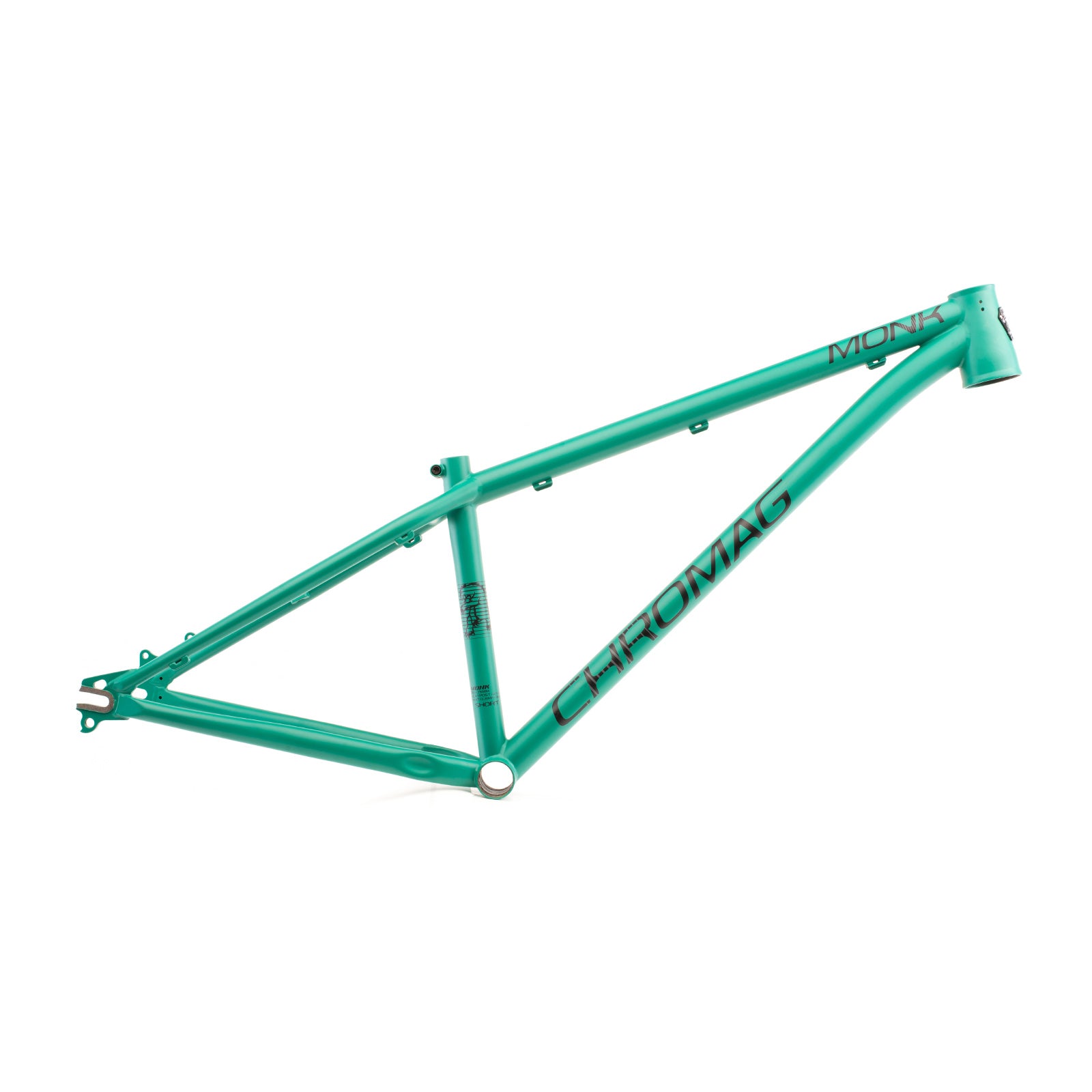

Monk Frame

$740   CAD

The Monk features our unique stainless steel dropout system for minimal complications with single-speed/disc brake setup. Our custom chain stays paired with dedicated geometry offer you a light and incredibly stiff rear triangle on a low slung steel weapon.

  • Want a jumpy trail bike? Take a look at the Stylus.
Available at quality bicycle retailers across the globe.
To purchase this item please contact us or visit your local bike shop.

Almost all Chromag frames are made from quality 4130 chromoly steel tubing. Chromoly is an abbreviation for chromium-molybdenum indicating the materials that the steel is alloyed with.

The added chromium helps increase the steels hardenability and also provide some corrosion resistance.
The molybdenum helps to increase the toughness of the steel.

It has a high tensile strength but is also malleable which is what gives our frames their notorious ride quality and feel. Chromoly is often used when more strength is required than that of mild carbon steel.

It falls under the AISI (American Iron & Steel Institute) 41XX designations which is where the “41” comes from. The “30” indicates it contains approximately 0.30% carbon by weight.

Chromoly is much stronger than traditional 1020 steel and it has a higher strength to weight ratio and high tensile strength, which means we can use less material and achieve a product that can withstand the abuse that riders love to throw at it.

Chromag 4130 Tubing

  XS Short Long XL
Typical Rider Height <5'4" 5'2"-5'8" 5'8"-6'2" >6'0"
Top Tube Length (Effective)  TTL 551mm 576mm 601mm 626mm
Seat Tube Length  STL 325mm
Reach  R 4385mm 410mm 435mm 460mm
Stack  S 542mm
Stand Over  SO 630mm
Head Tube Angle  HTA 70°
Seat Tube Angle  STA 73°
Chain Stay Length  CSL 396mm
Bottom Bracket Height  BBH 318mm
Head Tube Length  HTL 95mm
Fork Offset  FO 40mm
Wheelbase  WB 993mm 1018mm 1043mm 1068mm
Seatpost Size 31.6mm
Seatclamp Size Integrated
Headset Size 44mm-56mm tapered
BB Shell 73mm threaded
*measured with a 100mm fork. Optimal 80-120mm

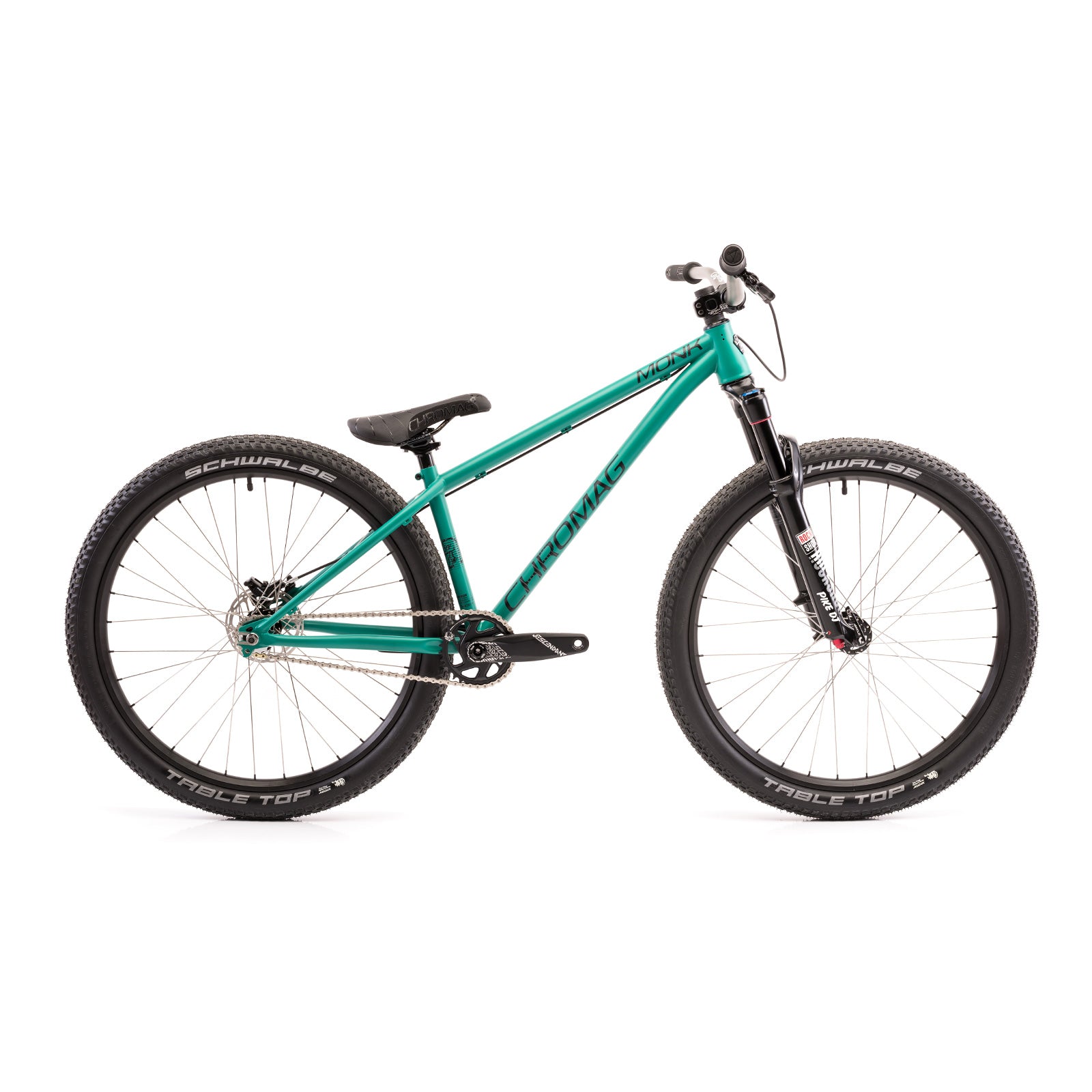

PARTS SINGLE SPEED
FORK Rock Shox DJ Pike 100mm
STEM Chromag HIFI 40mm
HANDLEBAR Fubars FU40 40mm rise
HEADSET Cane Creek Forty
CRANK Descendant 170mm
BRAKE SRAM Level (Rear Only)
ROTORS 140mm Centreline
SHIFTERS -
CASSETTE 16 Tooth
FRONT DERAILLEUR -
REAR DERAILLEUR -
RIMS Chromag Ally 26". 32h.
HUBS Chromag's, 4 pawl, 32h.
TIRES Maxxis Ikon
SEATPOST Truvativ Stylo
SADDLE Chromag Overture
GRIPS Chromag Wax
CHAIN SS
PEDALS -
PRICE $2,200 CAD
$2,000 USD*

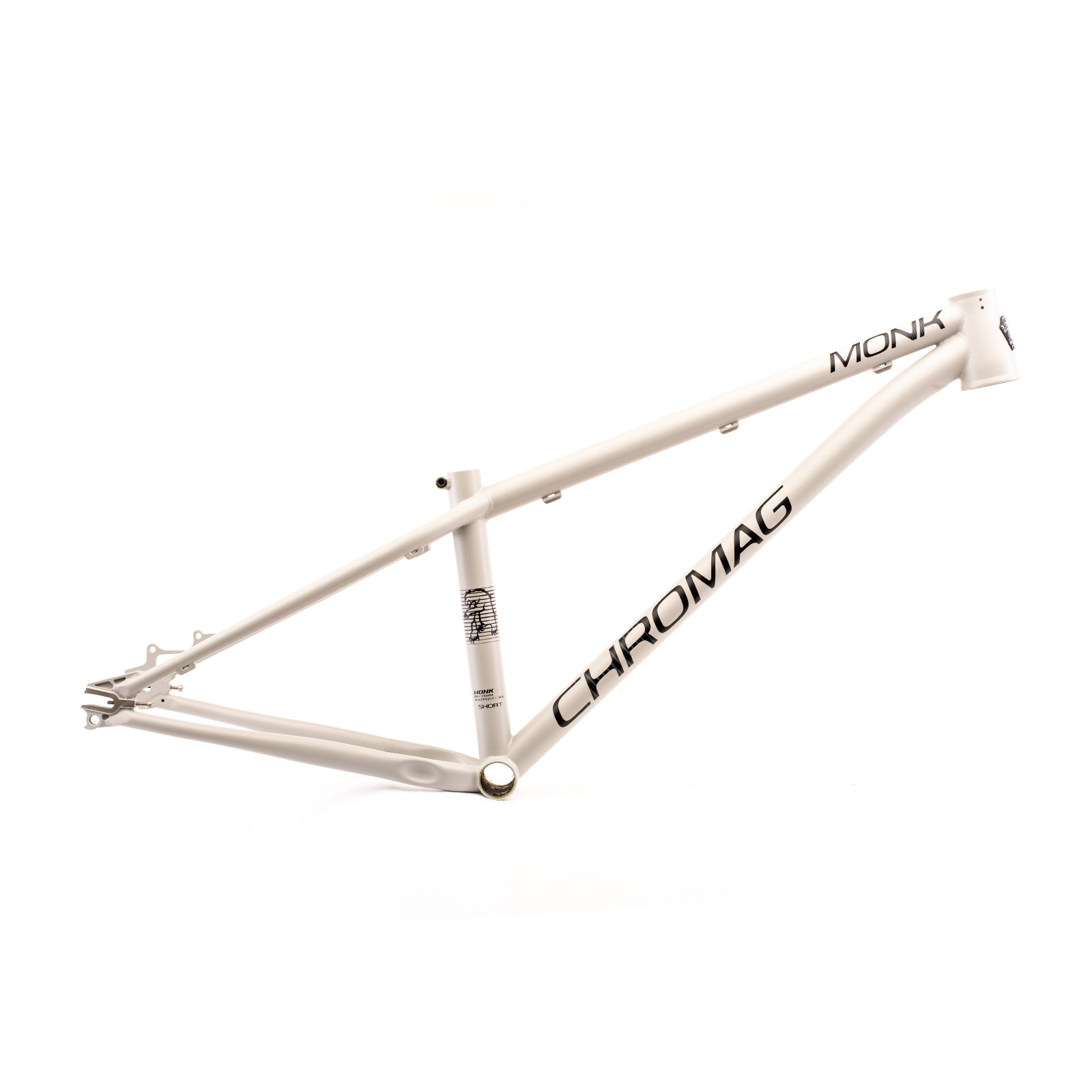

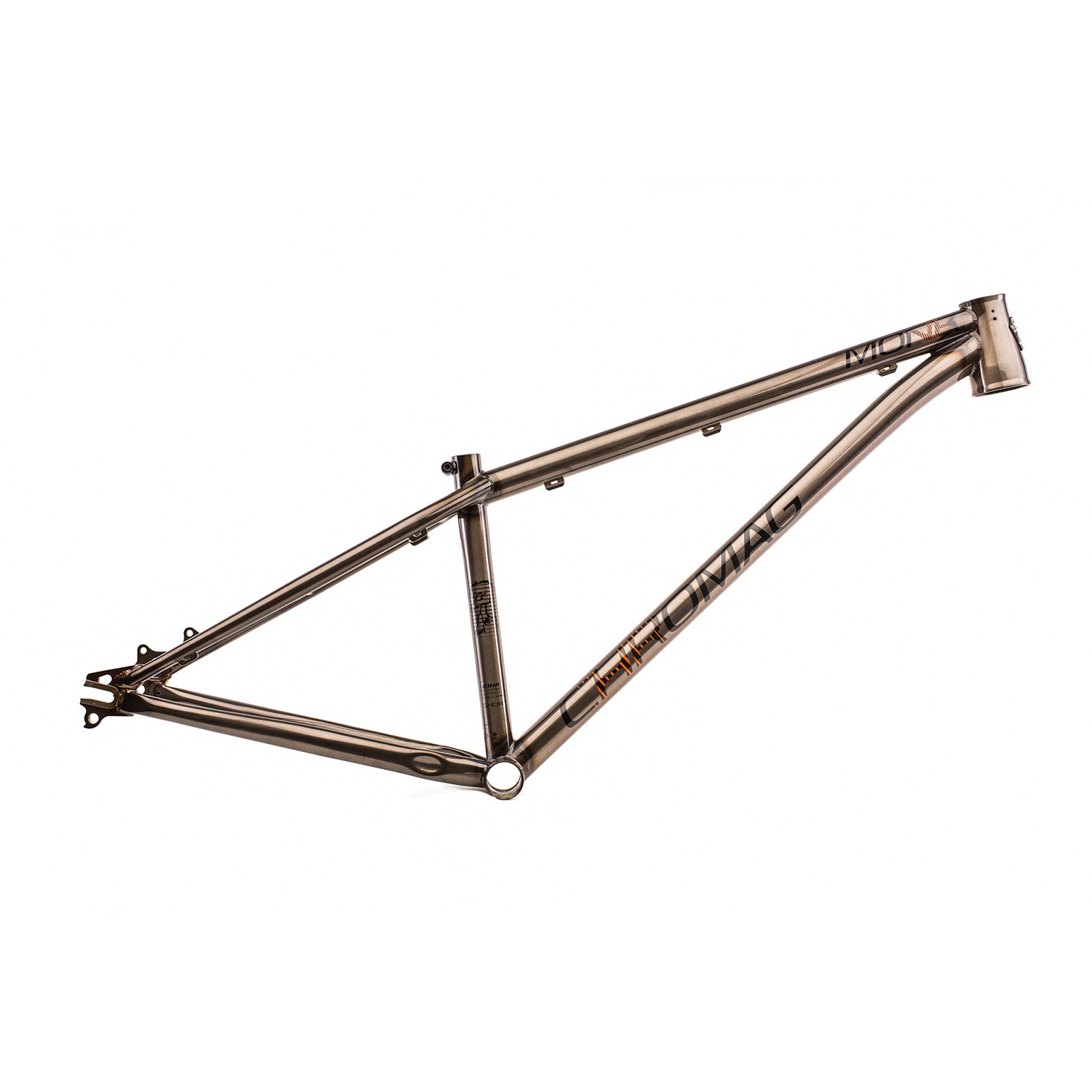

FRAME ONLY $740 CAD
$650 USD*
*US pricing applies to all US and International purchases.

To purchase a complete build, please contact us directly. We are happy to answer all your questions about our bikes and products. Call: 604-905-6667 Email: info@chromagbikes.com

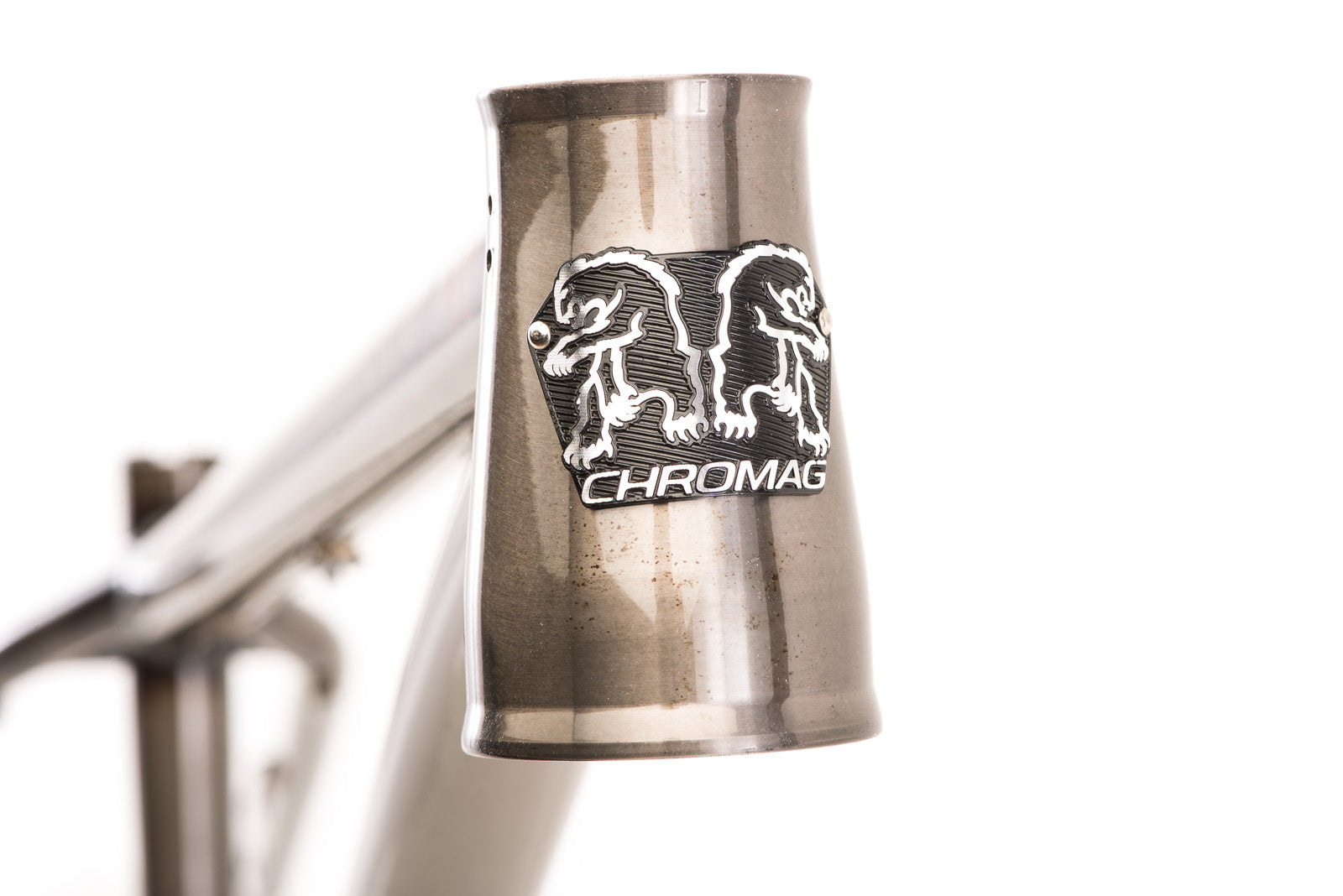

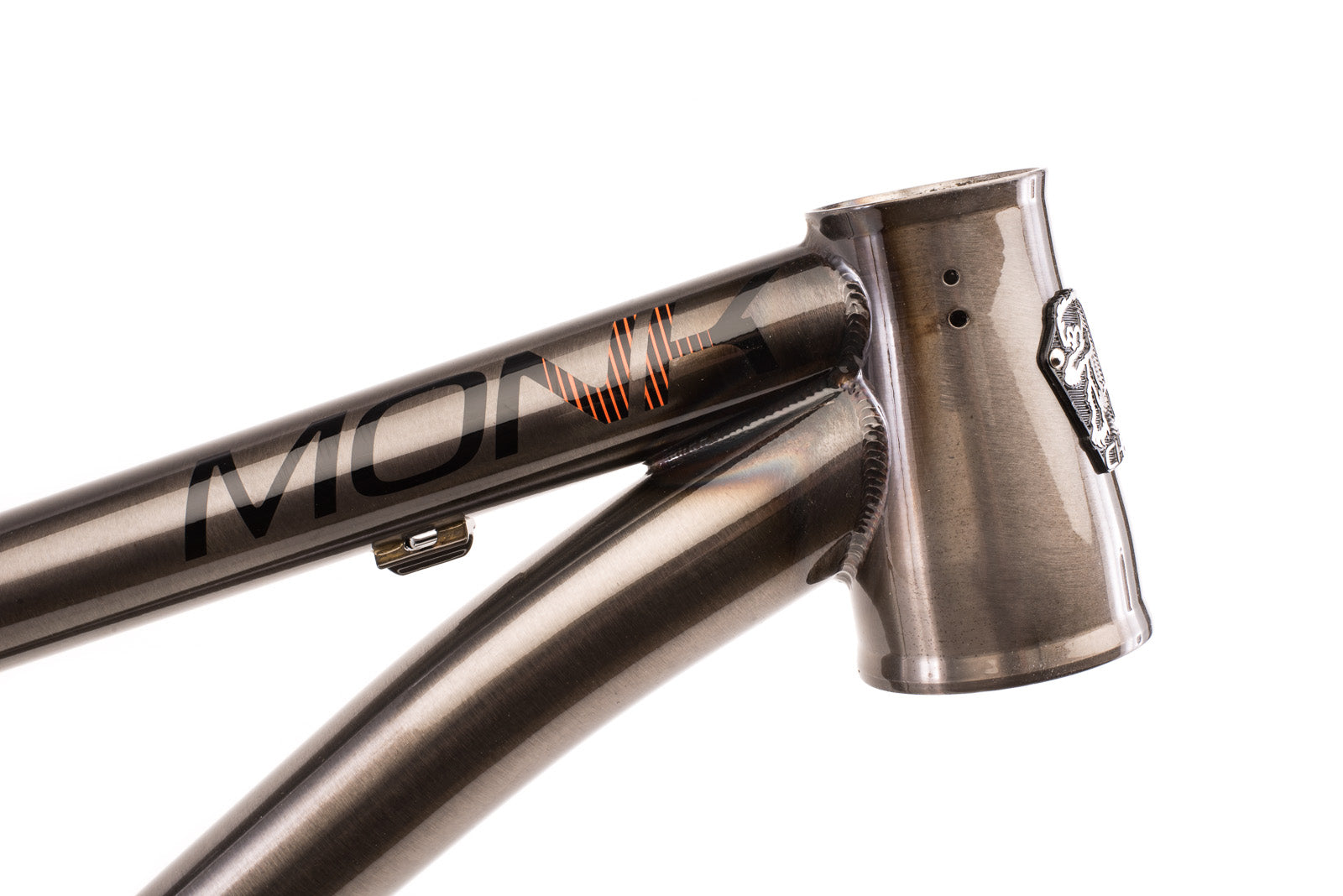

Your bike is special. The head tube badge is the finishing touch so we’ve always made a point of taking the time to do something interesting with it. Our head tube badges have changed over the years and are an indication of the time each bike was made. Whether it’s a cast bronze, or polished stainless steel, water cut aluminum or a 3D CNC carving, each one represents our commitment to detail.

Chromag Head Tube Badge

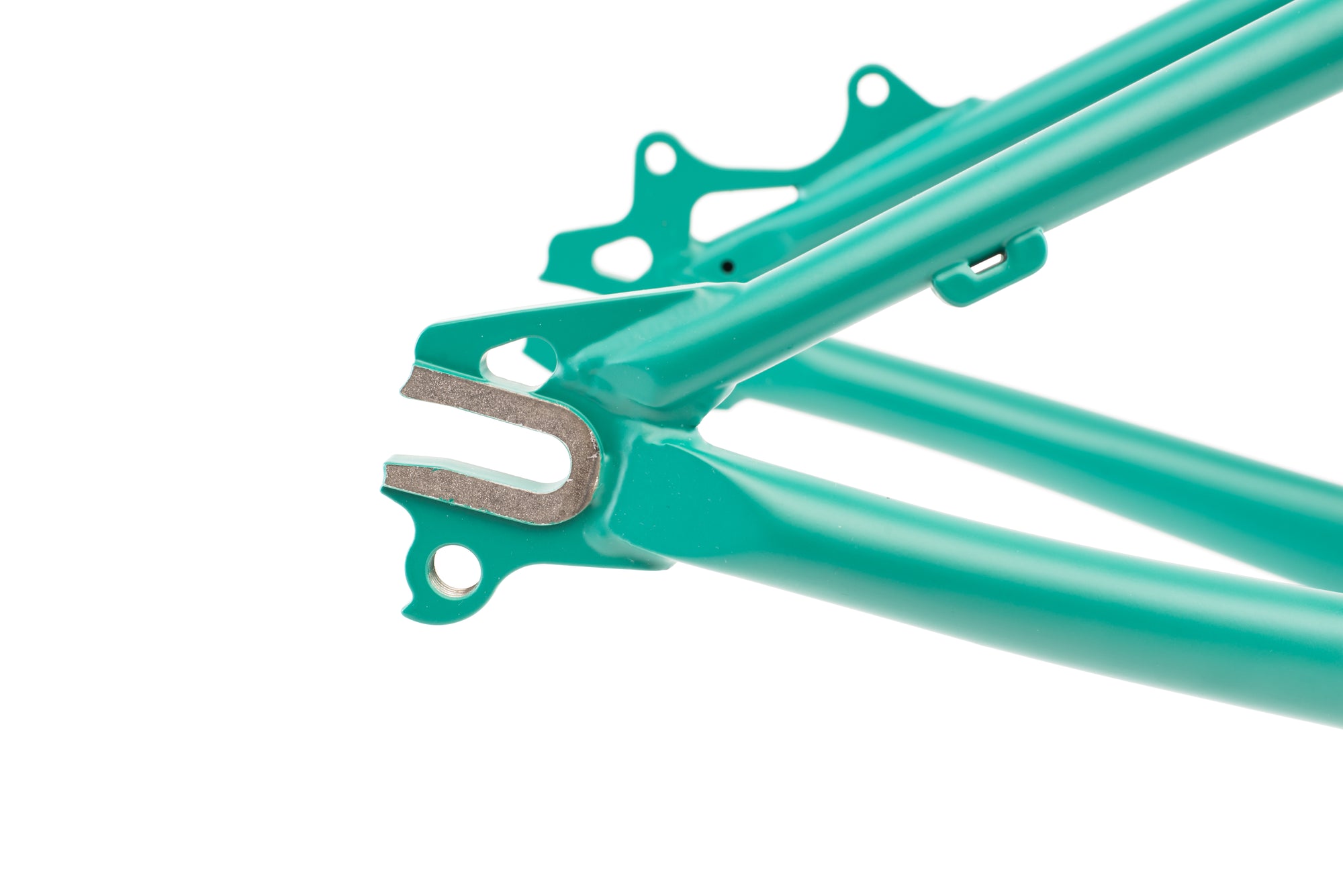

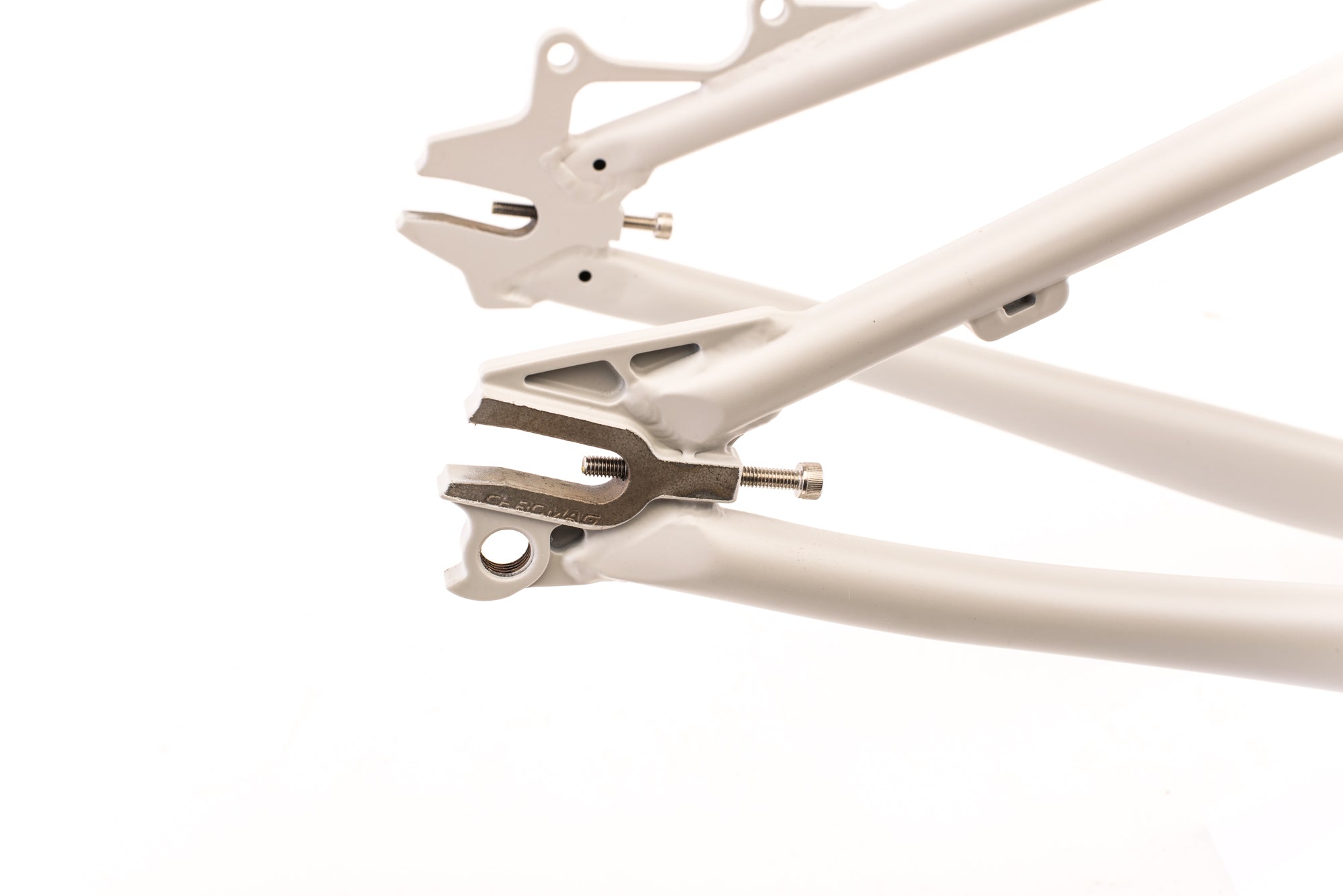

The Monk features horizontal dropouts, designed so you can run single speed without having to use a chain tensioner.

We leave them unpainted so your axle doesn't dig in and ruin the paint.

Monk Dropouts
