If you’re riding hard in rough terrain, casing occasionally (or often), and don’t want to think twice about your rims holding up, the BA30 is the rim for you. It delivers the confident feel of a stiff platform with just enough give to keep things tracking smooth. It’s made for riders who charge hard and expect their gear to hold up.

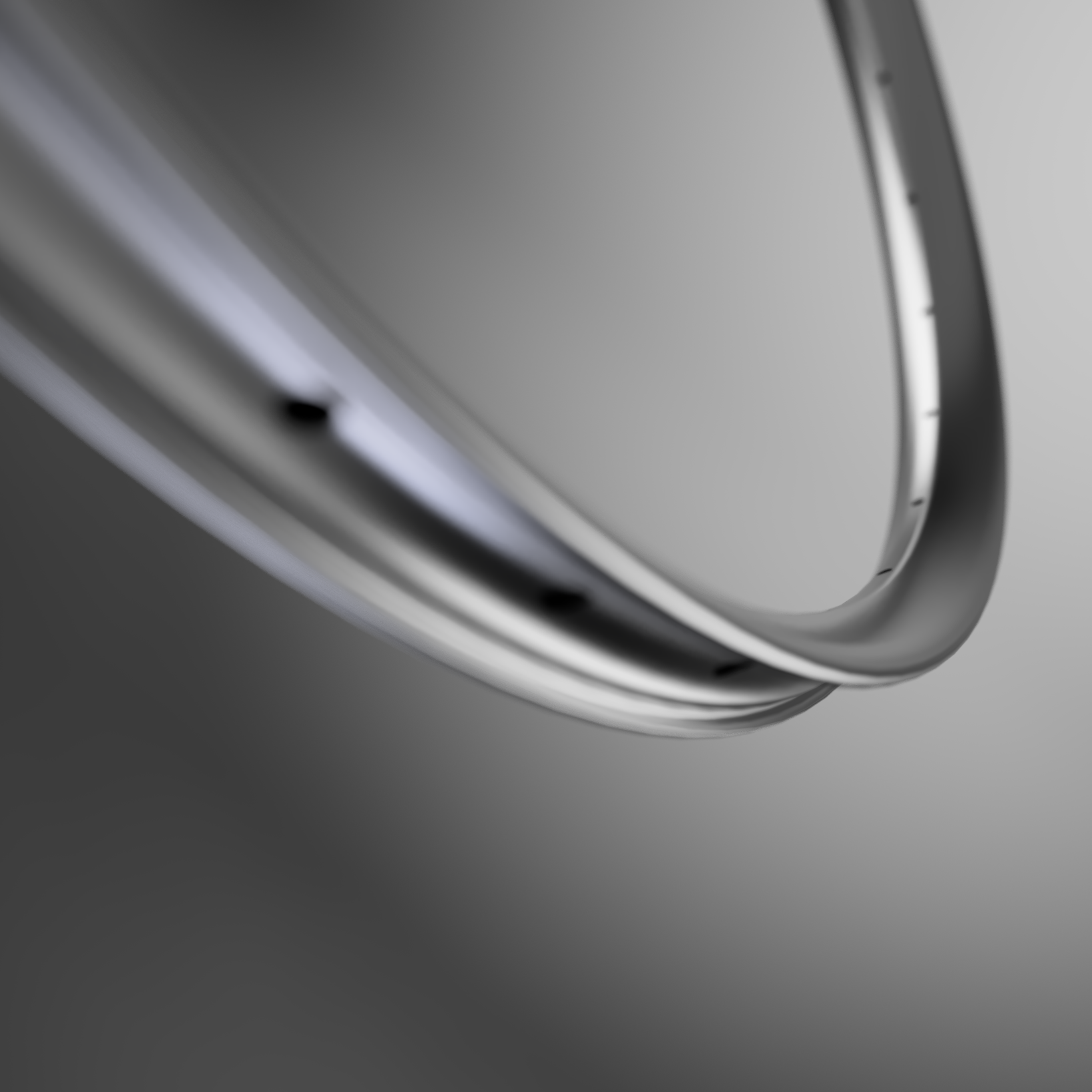

With the v2, we’ve built on the original strength-focused design and made it even tougher. A refined beadwall and sidewall design delivers 20% more impact resistance than its predecessor. The deeper rim section resists flat spots more effectively, while a wider central channel makes tire installs and trailside fixes easier. And thanks to optimized shaping and smart material redistribution, we’ve achieved all this with zero increase in weight.

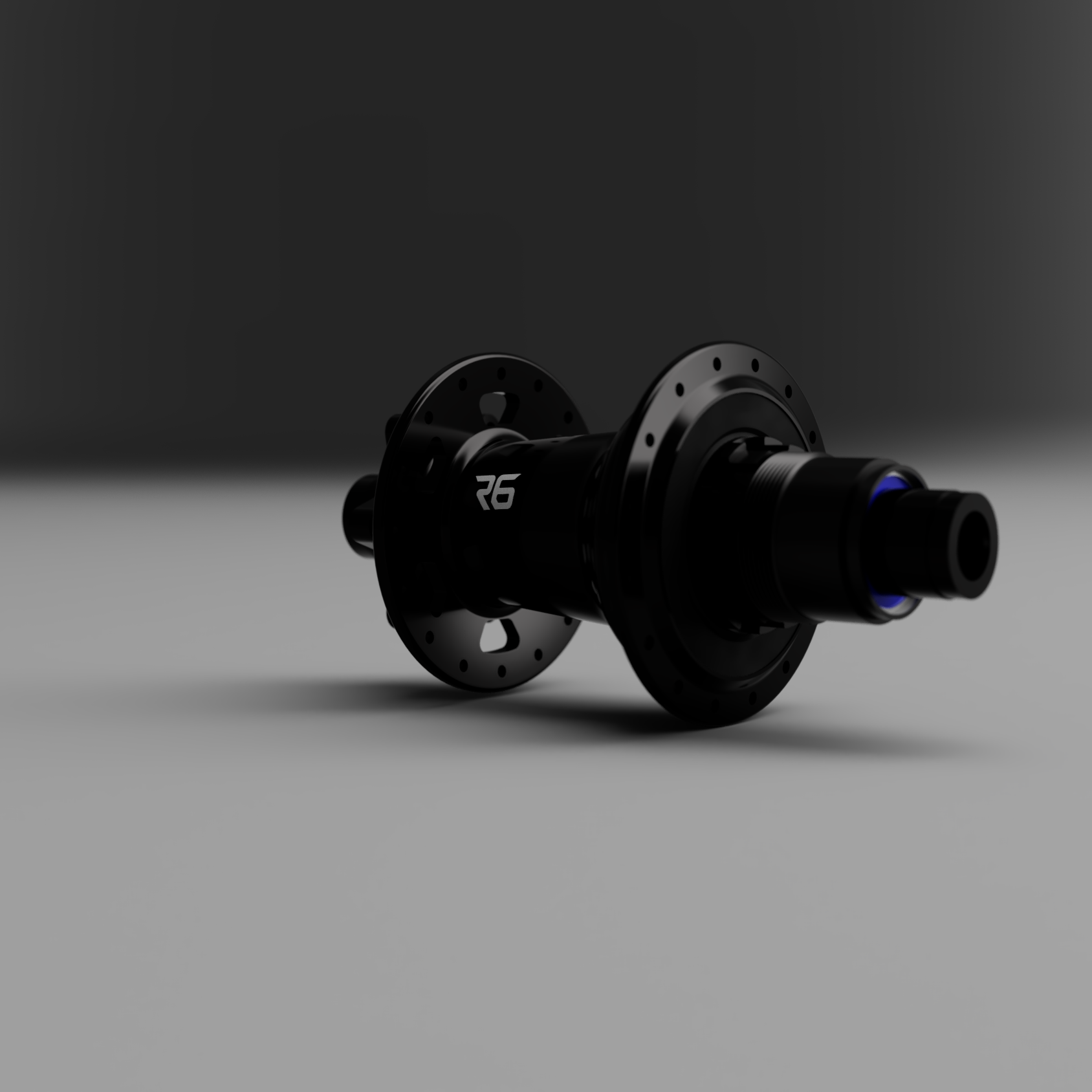

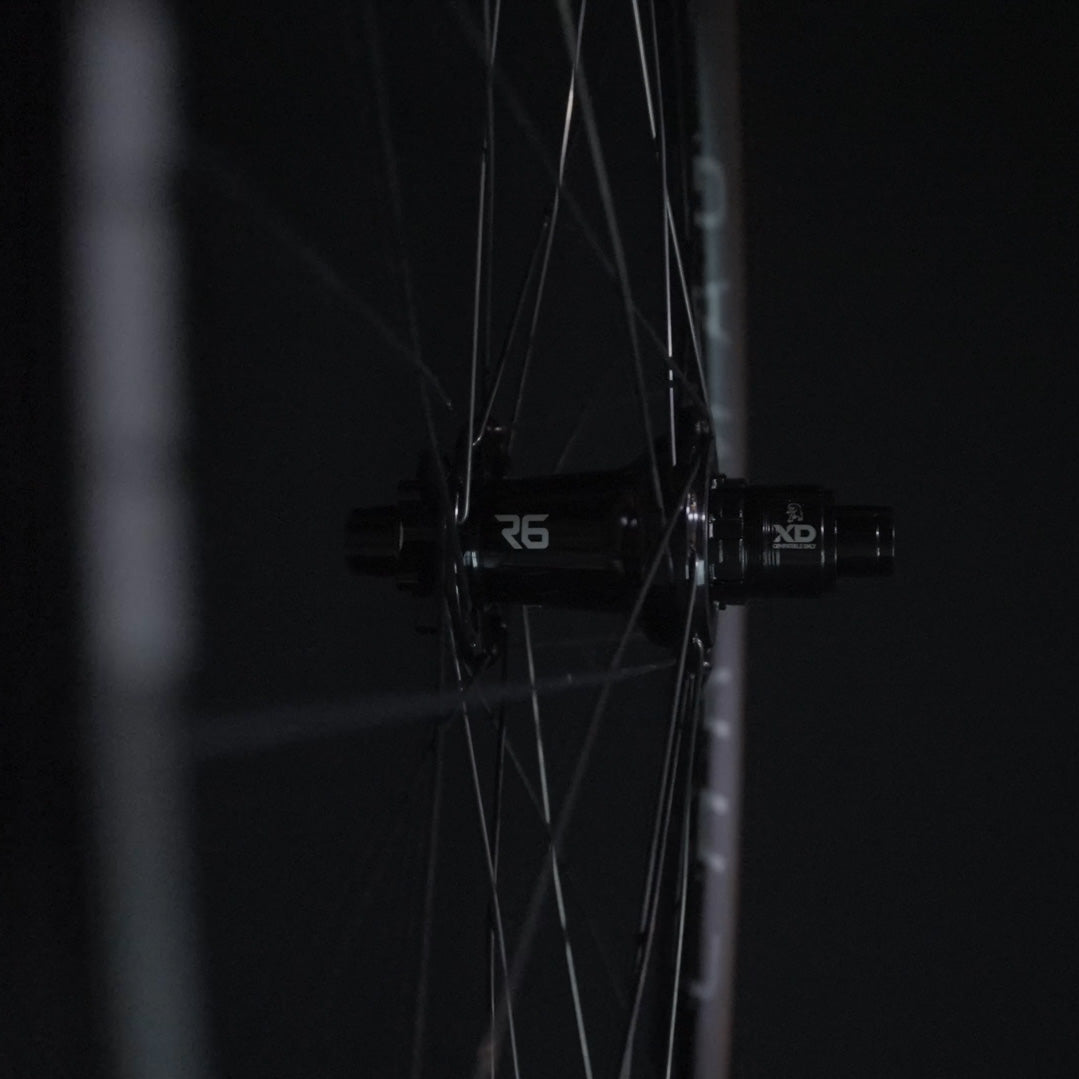

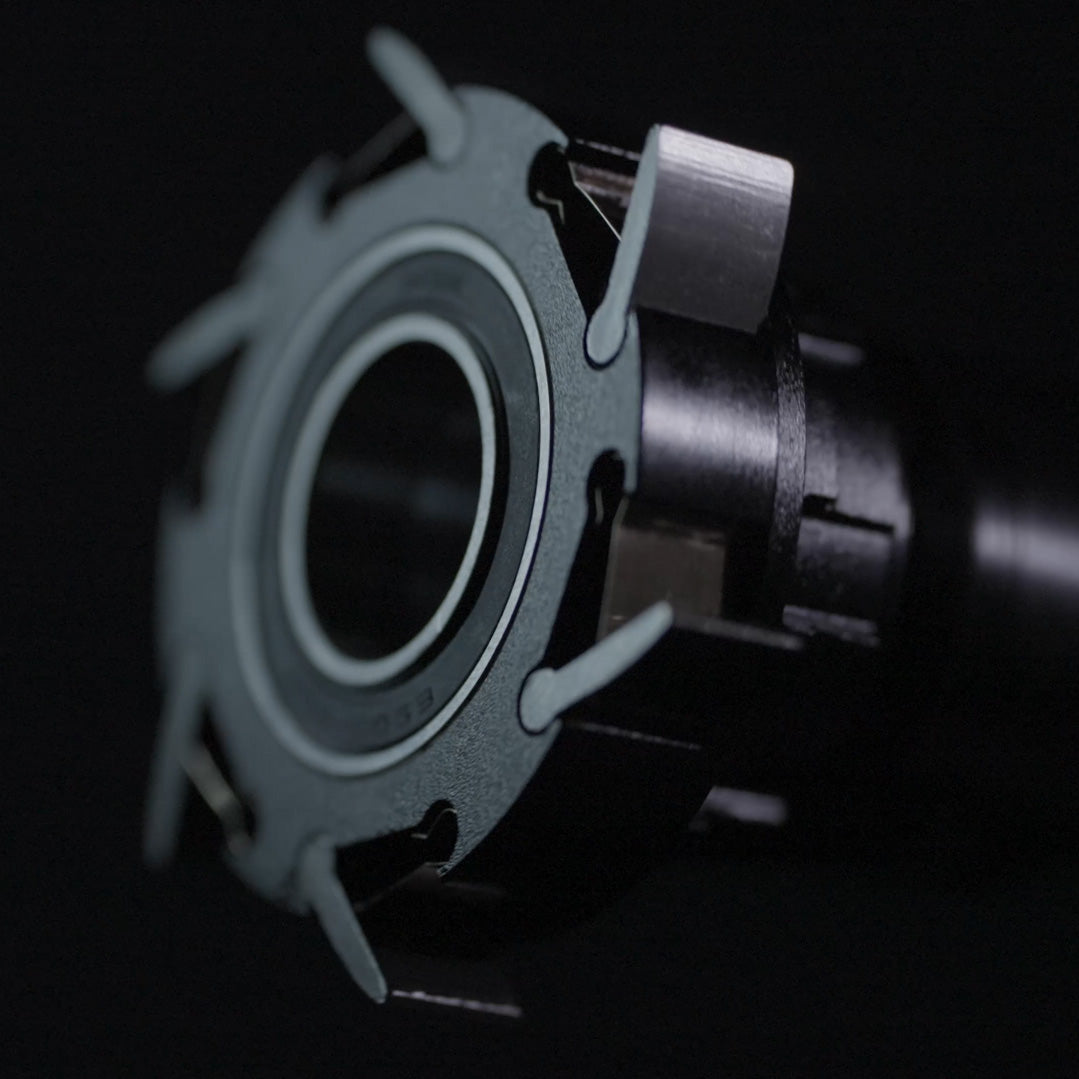

Our most aggressive alloy rim, proven on the world’s roughest tracks is laced to our brand new R6 hub. The R6 uses a 7075-aluminium axle with press on end caps and a larger diameter ratchet ring interfacing with 6 pawls. These interact in 2 sets of 3 resulting in 96 points of engagement. The alloy axle aids stiffness the use of press on end caps prevents over preloading the hub bearings or ends caps backing off in use. One of the design goals was to minimise friction. Refining our axle tolerances and designing a single lip freehub seal helped us achieve our friction goals while maintaining the reliability our hubs are known for.

☛ High Impact Resistance
Reinforced beadwall and sidewall design provide exceptional durability on rough, unforgiving terrain.

☛ Deep Rim Profile
Reduces the chance of flat spots from hard hits and harsh landings.

☛ Easy Tire Changes
A wide central channel makes mounting and removing tires smoother, even trailside.

☛ Optimized Strength-to-Weight Ratio
Strategic shaping and material placement deliver serious toughness without excess weight.

☛ Premium 6069-T6 Aluminum Alloy
Chosen for its superior strength, resilience, and long-term performance under stress.

☛ Fusion-Welded, Precision-Ground Seam
Creates the strongest part of the rim, ensuring perfect alignment and airtight tubeless setup.

☛ 1 wheel.

☛ Purpose-Built Alloy Selection
We use 6069-T6 aluminum for its elevated yield strength and impact tolerance compared to more common alloys—ideal for aggressive trail and gravity use.

☛ Fusion Welded for Structural Integrity
Each rim is joined with a full fusion weld, then ground smooth to ensure a seamless junction—stronger than a sleeve joint and guaranteed airtight for tubeless setups.

☛ Precision-Engineered Extrusion
The rim profile is optimized for a balance result, fine-tuned to deliver stiffness where it’s needed and compliance where it counts.

☛ Controlled Material Redistribution
Rather than simply overbuilding, we strategically adjusted the rim’s geometry to reinforce critical areas without excess mass—keeping weight down and performance high.

☛ Consistent Tolerances and Finishing
Post-weld machining and finishing ensure that every rim is true, cleanly aligned, and consistent from batch to batch—ready to mount and ride straight from the box.

☛ Designed for Longevity
From alloy selection to structural layout, every aspect of the BA30v2 was engineered with real-world durability in mind—not just to survive big hits, but to keep performing ride after ride.
