Phase30 Front Wheel

$261

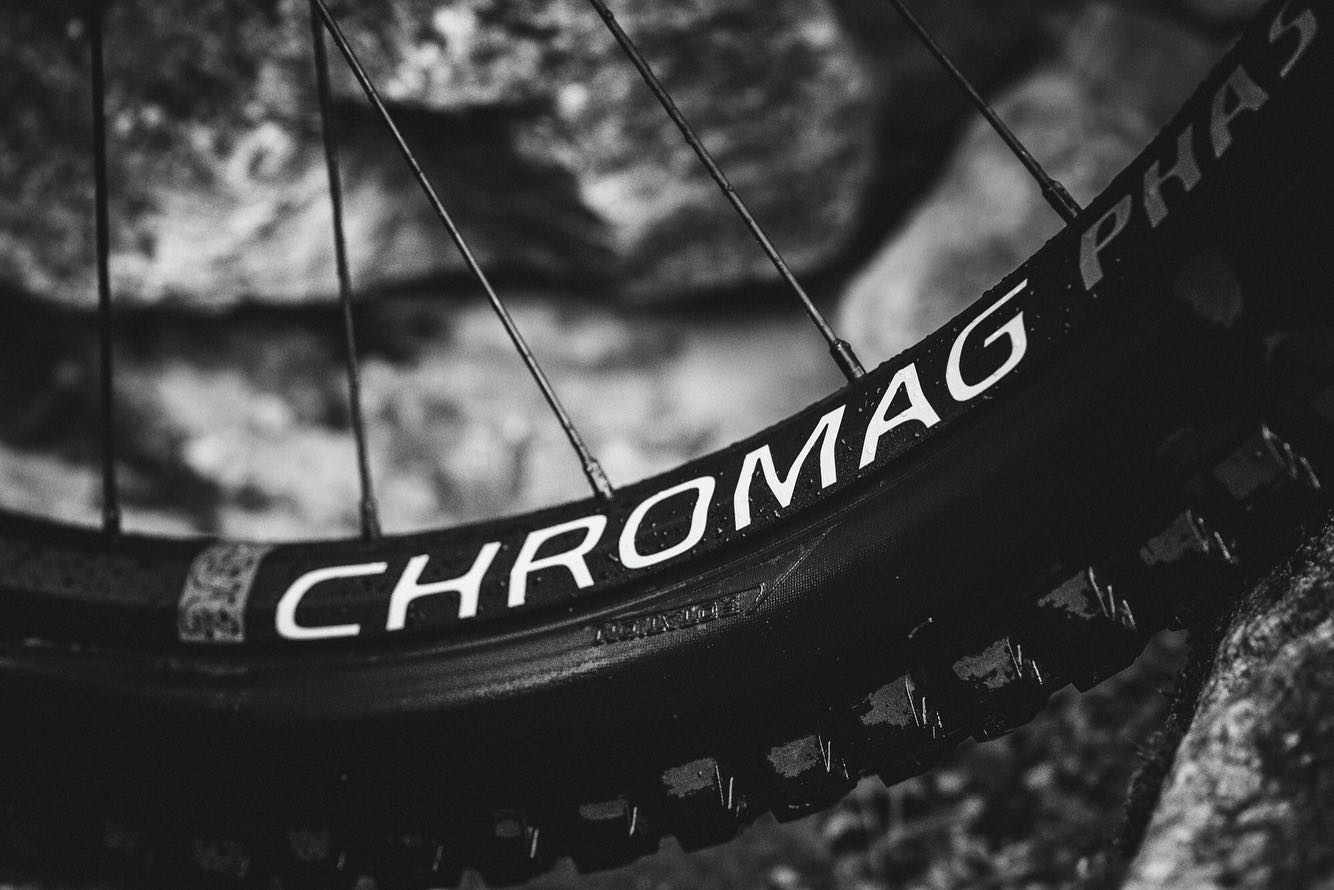

The PHASE30 mirrors our BA30 profile but in a lighter format that suits all mountain and trail riding conditions.

This is a high quality alloy rim that is tougher than most with added protection at the bead-walls for impact resistance and reduced sidewall cuts. The nipple/spoke bed is oriented to the spoke direction to reduce weakness caused by bend in the spoke at the nipple hole. The PHASE30 is made with premium alloy, extruded and carefully formed for consistent shape. It is then fusion welded and ground for a strong precise finish. Our fusion welding system leaves a perfect seamless joint that becomes the strongest section of the rim ensuring that your rim won’t split at the seam if you have an impact there.

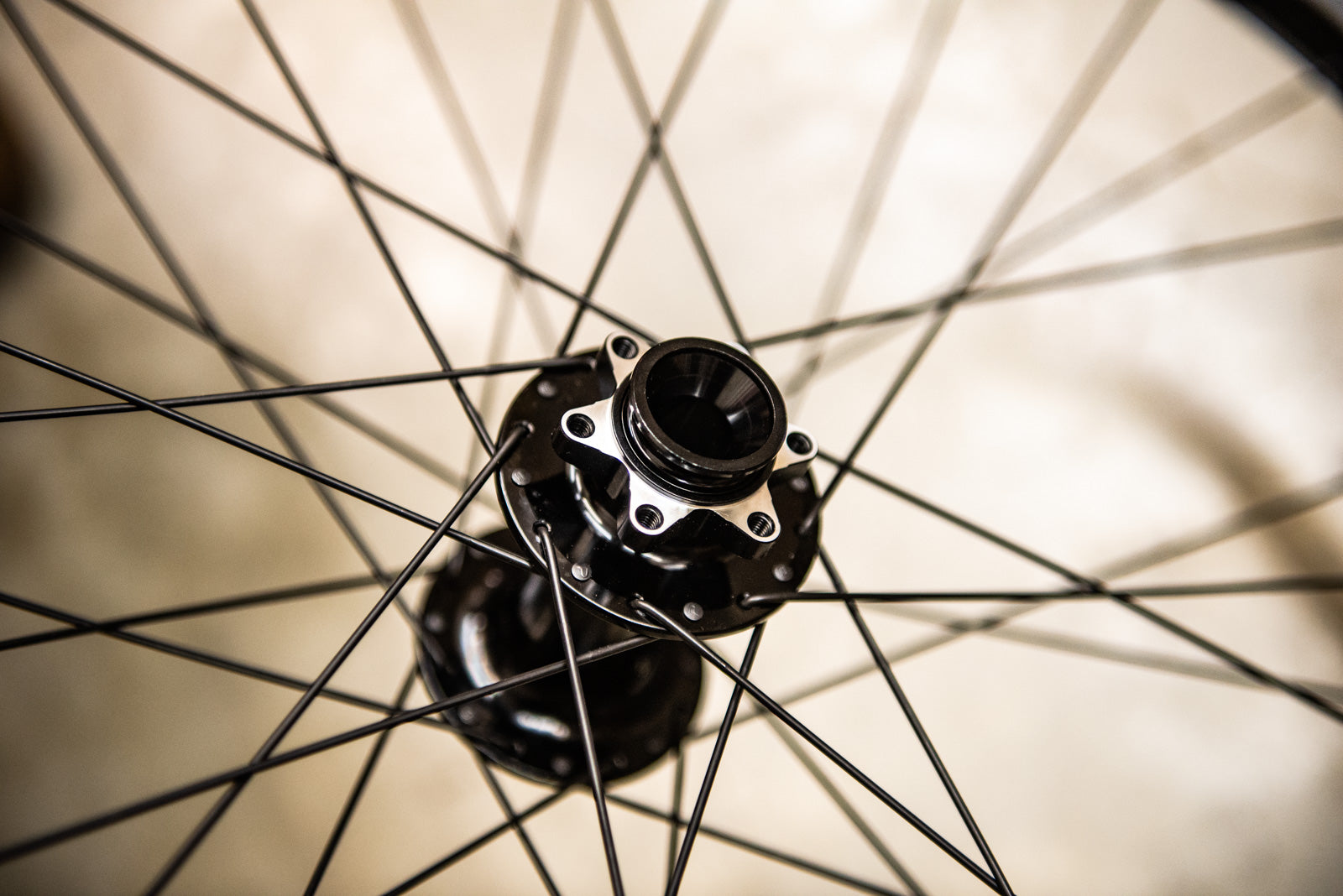

The rims are laced to our new R4 hub. The R4 is designed to be a solid, reliable hub with a durable axle assembly and robust set of bearings.

We opted for a Chromoly steel axle for stiffness and longevity.  Using steel allows a smaller diameter axle which in turn gives us more room to use larger, sealed bearings (we use USA made enduro bearings).

Use code: WheelieGood to receive $50 off when you buy a front and rear wheel.

Please select below which type of end caps you need. If in doubt drop us an email

Size:
Quantity:

Rather Shop Local? Click Here to Find Your Nearest Dealer

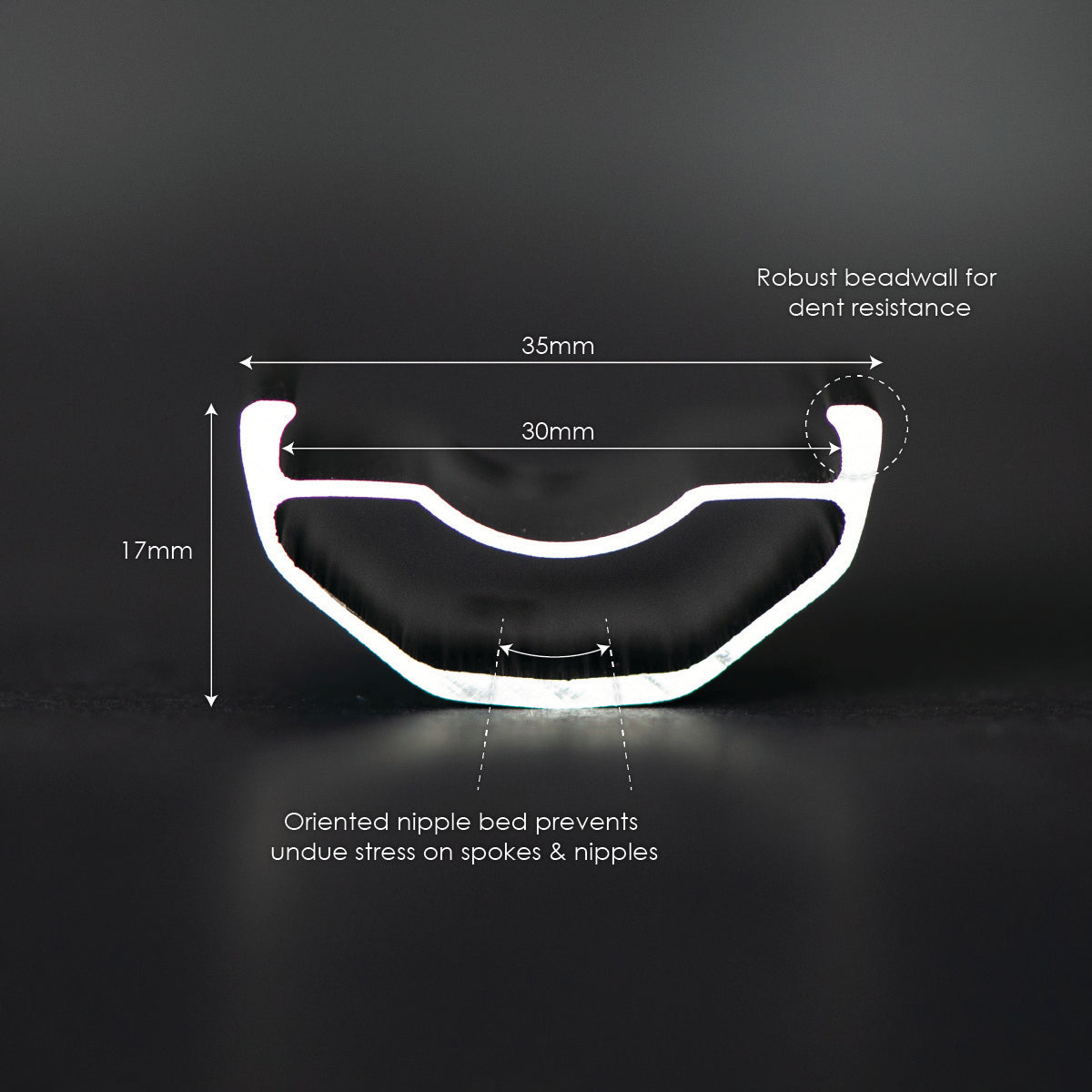

Chromag Phase30 Rim Cross Section
Material // Premium extruded alloy
Finish // Fusion welded seam-ground finish
Profile // Internal bracing profile / Impact resistant design
Tubeless // Tubeless Ready
Weight // 27.5: 545g / 29: 584g
Internal Width // 30mm
Valve // Presta
Max Tire Pressure 2.4" // 45PSI
Max Tire Pressure 2.8" // 30PSI
Max Spoke Tension // 125KgF
Build Info
// 27.5" ERD: 566mm / 29" ERD: 604mm
Hole Count // 32

Front

Axle Diameter // 15mm
Spacing // Boost 110mm
End Caps // Regular or RockShox Torque (please request in order notes)
Tubeless // Tubeless Ready, Taped, Valves Included
Spokes // 32

Rear

Axle Diameter // 12mm
Spacing // Boost 148mm
Driver // XD, HG or Microspline (please request in order notes)
Tubeless // Tubeless Ready, Taped, Valves Included
Engagement // 4-pawl, 36 Point
Spokes // 32
